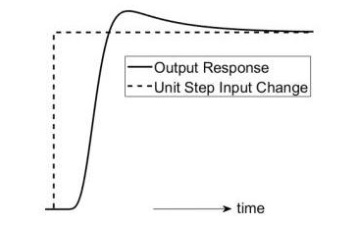

​​​​Choose the transfer function that best fits the output response to a unit step input change shown in the figure



  1. $\frac{(\alpha s+1) e^{-\theta s}}{\left(\tau_{1} s+1\right)\left(\tau_{2} s+1\right)^{2}}$
  2. $\frac{(\alpha s+1) e^{-\theta s}}{\left(\tau_{1} s+1\right)\left(\tau_{2} s+1\right)}$
  3. $\frac{(\alpha s+1)}{\left(\tau_{1} s+1\right)\left(\tau_{2} s+1\right)^{2}}$
  4. $\frac{(\alpha s+1)^{2} e^{-\theta s}}{\left(\tau_{1} s+1\right)\left(\tau_{2} s+1\right)^{2}}$
